Ultrafiltration TecULTRA™

Ultrafiltration is an advanced technology that removes fine particles, microorganisms, bacteria, viruses, and other unwanted substances from water. It uses special membranes with microscopic pores that allow only water molecules to pass through while retaining all larger particles. The result is hygienically safe and crystal clear water.

Ultrafiltration Technology Program

Sustainability and environmental protection are key priorities today. One area that deserves special attention is water resource management. Photon Water has developed its own TecULTRA™ ultrafiltration technology program.

Photon Water develops and manufactures ultrafiltration units directly in the Czech Republic, with an emphasis on high quality and reliability. Our ultrafiltration systems are designed for various applications, from domestic water treatment to industrial and municipal water management projects.

Advantages of Ultrafiltration

One of the advantages of ultrafiltration technologies is their applicability in the field of water recycling. This allows for a significant reduction in water consumption while also limiting the amount of wastewater discharged into the environment. This is particularly beneficial for industrial companies, which can reuse treated water without having to draw on new sources.

Photon Water recognizes the importance of a sustainable approach to water resources and is actively working to develop technologies that protect the environment. Our ultrafiltration systems not only provide clean water, but also contribute to the conservation and reuse of this valuable natural resource.

Ultrafiltration TecULTRA™

Our ultrafiltration systems not only provide clean water, but also contribute to the conservation and reuse of this valuable natural resource. Whether for domestic use, industrial applications, or water management projects, TecULTRA™ ultrafiltration is a reliable and environmentally friendly solution for clean and safe water. Thanks to its high efficiency, flexibility, and environmental friendliness, this technology is becoming an essential part of sustainable water management.


This progressive water treatment technology uses special PWT UF membranes with very small pores measuring 10 nanometers. This pore size allows ultrafiltration to capture not only large particles and microorganisms, but also macromolecules such as bacteria and viruses. This makes it a highly effective method for removing contaminants and ensuring hygienically safe water.

Versatile solution

Application of Ultrafiltration

Whether for domestic use, industrial applications, or water management projects, TecULTRA™ ultrafiltration offers a reliable and environmentally friendly solution for clean and safe water. Thanks to its high efficiency, flexibility, and environmental friendliness, this technology is becoming an essential part of sustainable water management.

 Applications of Photon Water Ultrafiltration

  • Recycling and treatment of industrial wastewater
  • Recycling of water in swimming pools and water parks
  • Treatment of water from surface sources – reservoirs, rivers, ponds
  • Treatment of rainwater into drinking water and process water
  • Treatment of groundwater
  • Pre-treatment of water for reverse osmosis
  • Recycling of wash water from sand filters
One solution, many benefits

Why use TecULTRA™ technology

Operating Cost Savings

‣ Reduced costs for purchasing water for industrial processes
‣ Lower costs for wastewater disposal

High Quality Recycled Water

‣ Use of advanced membrane technologies
‣ Removal of unwanted substances and contaminants
‣ High-quality water for reuse in industrial processes

Sustainable Water Management

‣ Reuse of wastewater for industrial purposes
‣ Reduction in drinking water consumption

Automation and Efficiency

‣ Control of the recycling line using an advanced PLC system
‣ Remote supervision and monitoring of operations
‣ Process optimization and reduction of operating costs

Flexibility and Adaptability

‣ Recycling lines tailored to specific requirements
‣ Suitable for various industries (chemical, food, pharmaceutical, automotive)

Environmental Protection

‣ Limiting water pollution
‣ Reducing the volume of wastewater discharged
‣ A sustainable approach to water management

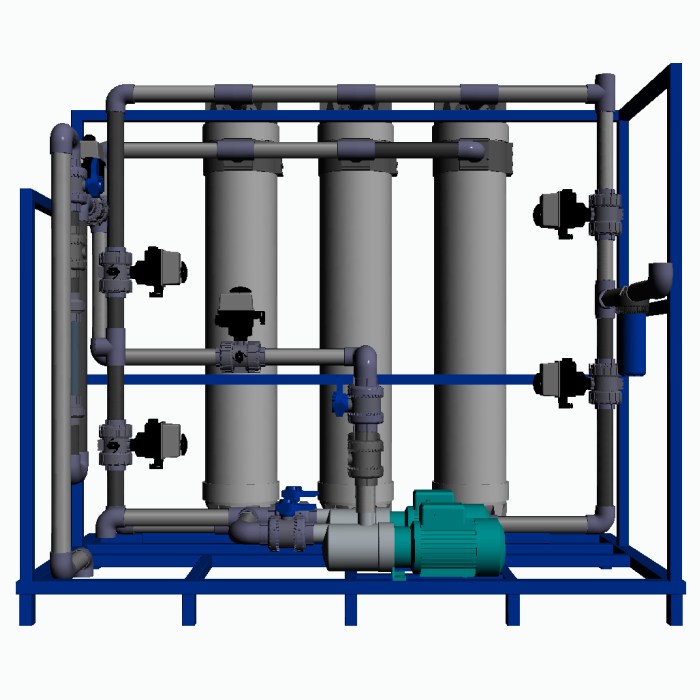

Parameters of Ultrafiltration Units by Photon Water



  • Ultrafiltration uses PWT UF membrane modules, which are fitted with membranes with a pore size of only 10 nm.
  • 99.99% efficiency in separating bacteria and viruses.
  • Inner/outer diameter of PVC hollow fiber: 1.0/1.96 mm.
  • The units are assembled on a steel self-supporting frame.
  • Dosing pumps for CEB and inline coagulation are included.
  • The units are equipped with a 130 µm pre-filter.
  • CALPEDA backwash pumps.
  • Programmed automatic valves.
  • Pipe distribution - pressure PVC-U.
  • PLC, remote monitoring
  • Possibility of supplying atypical ultrafiltration designs
  • The delivery includes a backwash tank, chemical barrels, and a catch basin
  • Possibility of implementing the system in a container design

Technical specifications of ultrafiltration units

Ultrafiltration
unit
Inflow
Q hmax
(m³/h)
Daily
production
Q dmax (m³/d)
Membrane
modules
Recovery
(%)
Plan view
length x width (mm)
TecULTRA™ 240 0,24 5,8 1 x PWT UF 240 80–98 800 x 800
TecULTRA™ 500 0,5 12 2 x PWT UF 240 80–98 800 x 800
TecULTRA™ 1700 1,7 41 1 x PWT UF 1700 80–98 1200 x 1200
TecULTRA™ 3000 3 72 1 x PWT UF 3000 80–98 1200 x 1200
TecULTRA™ 6000 6 144 1 x PWT UF 300 80–98 1500 x 1200
TecULTRA™ 9000 9 216 2 x PWT UF 300 80–98 1500 x 1200
TecULTRA™ 12000 12 288 4 x PWT UF 300 80–98 2000 x 1500
TecULTRA™ 18000 18 432 6 x PWT UF 300 80–98 2000 x 1500
TecULTRA™ 24000 24 576 8 x PWT UF 300 80–98 2500 x 1500
TecULTRA™ 36000 36 864 12 x PWT UF 300 80–98 2500 x 1500

Gallery

Recycling of industrial wastewater

Photon Water specializes in industrial wastewater recycling. Its innovative approach to wastewater management provides solutions that are not only cost-effective but also environmentally friendly.

Are you interested in Ultrafiltration for your project? Contact us
