Removing PFAS from water with TecPFAS™ technology

Photon Water is introducing a breakthrough solution for safe water. Our innovative TecPFAS™ technology can effectively remove harmful PFAS substances found in many water sources. PFAS are synthetic chemicals that have been widely used in industry and can have a negative impact on human health. Their presence in water sources is alarming and requires effective remediation.

PFAS removal technology TecPFAS™

Perfluorinated and polyfluorinated substances PFAS are a large group of several thousand artificially created organic substances that are widely used in industrial and domestic applications. Most PFAS are persistent (resistant to decomposition) or precursors (forerunners) of persistent compounds. The high resistance of these compounds is due to the presence of a very strong chemical bond between fluorine and carbon. This bond has earned PFAS the nickname forever chemicals.

The TecPFAS™ technology, which we have successfully implemented at multiple sites, is based on an innovative combination of treatment methods:

  • TecULTRA™ ultrafiltration
  • nanofiltration / reverse osmosis
  • application of unique PFAS-selective ion exchangers in combination with GAC
  • TecELSORP™ electrosorption technology

Benefits of TecPFAS™ Technology

Efficient technology

‣ Proven technology combining advanced membrane processes with electrosorption and selective ion exchangers
‣ Multi-stage PFAS removal
‣ Solutions for both short and long PFAS chains
‣ Simultaneous removal of multiple contaminants
‣ Minimisation of concentrate volume

Smart Design

‣ Compact solution with a small footprint

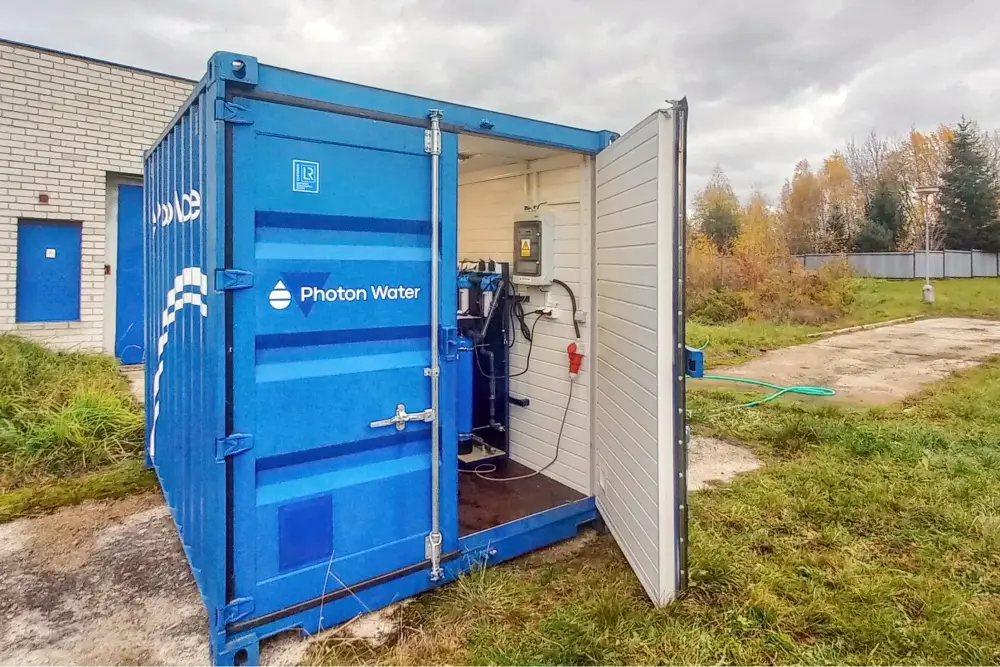

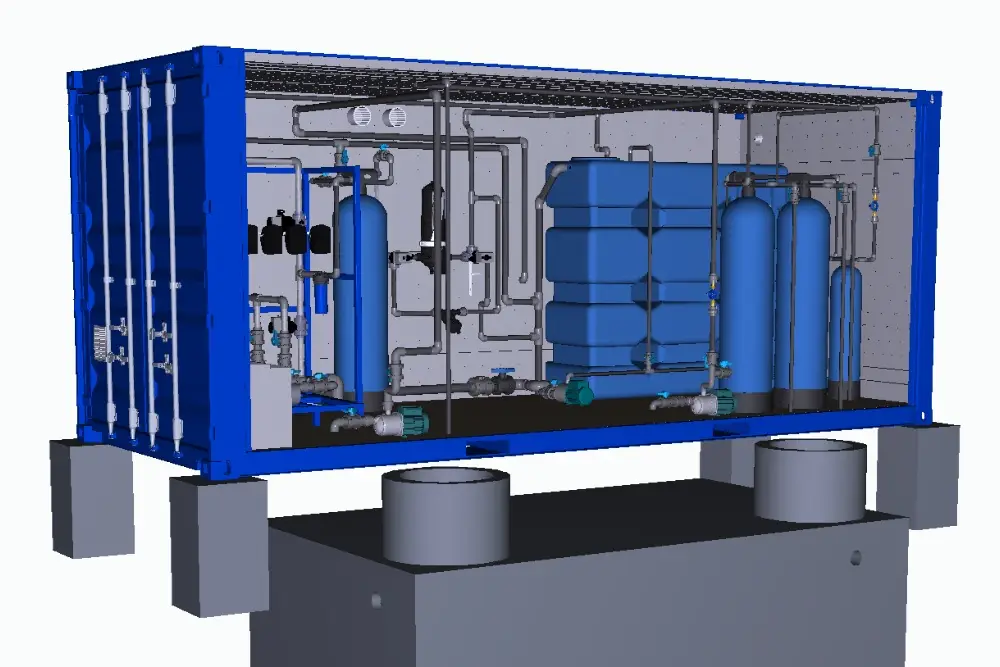

‣ Option to implement the system in a container design
‣ Fully automatic system with minimal maintenance

Support and deployment

‣ Possibility of a pilot run before actual implementation
‣ Technological supervision and remote management

Description of TecPFAS™ technology

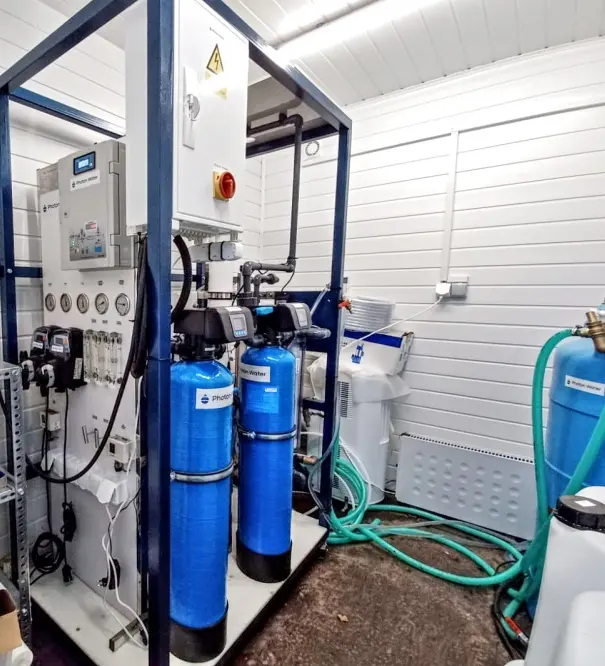

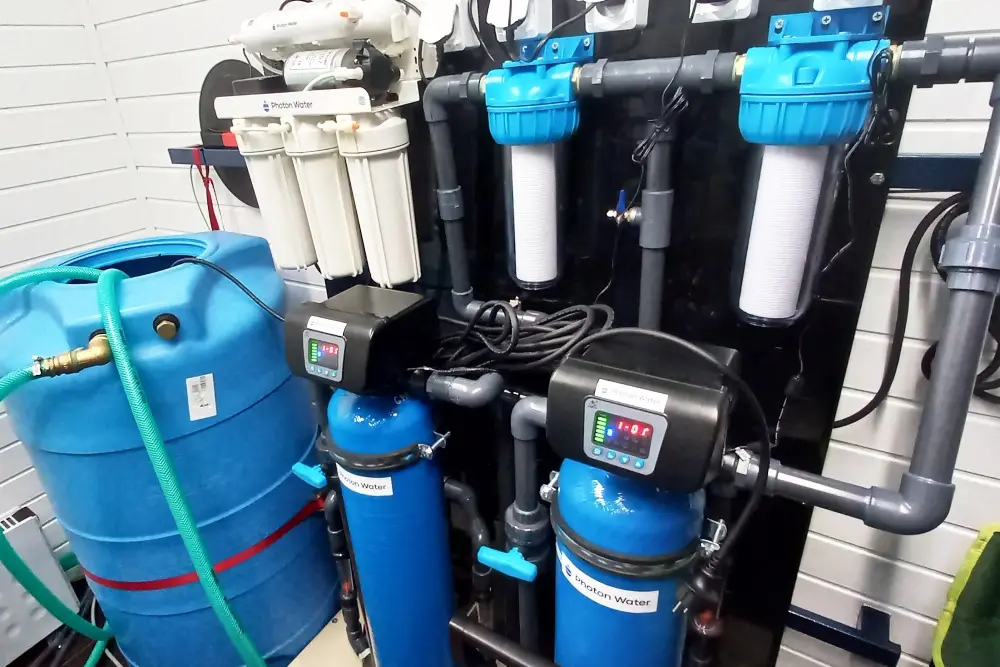

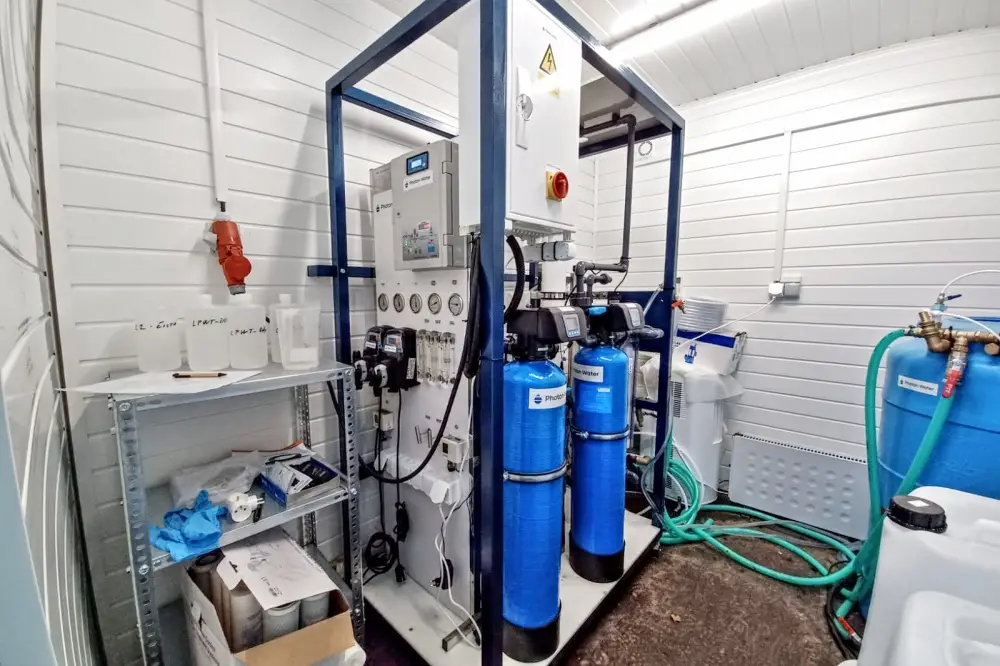

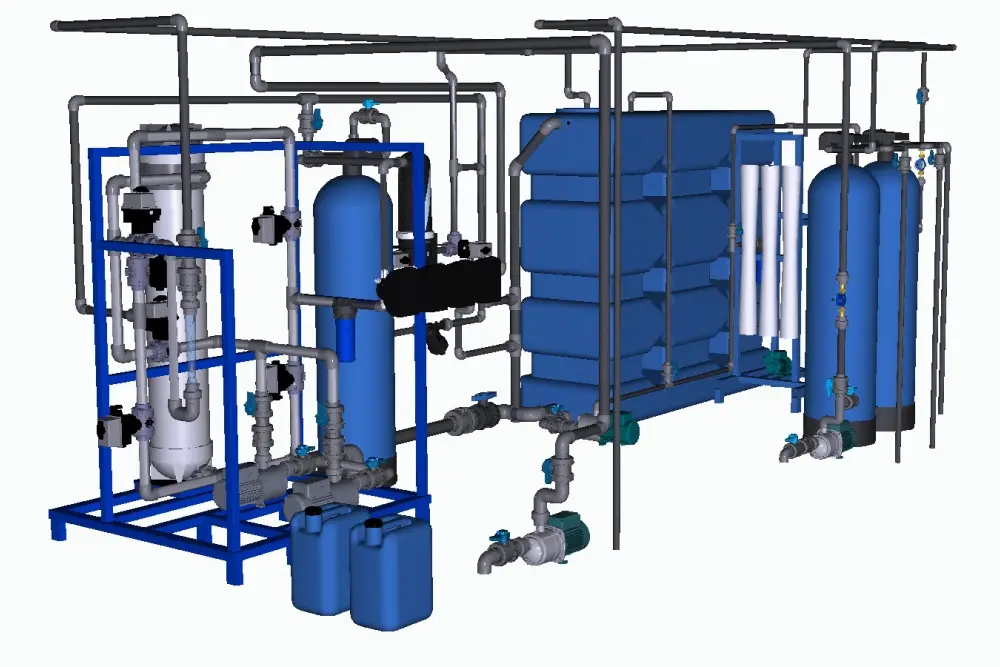

The raw water is pumped to the water treatment plant's process line through an automatic disc filter to the TecULTRA™ ultrafiltration unit. The water then continues to secondary membrane filtration, where the primary water stream is separated. Depending on the nature of the PFAS (short or long chain), the input concentration, and the required output parameters, the pre-treated water is fed into one of two alternative systems: the selective IONEX and the TecELSORP™ electrosorption unit. Here, excessive concentrations of PFAS and other contaminants are removed as required. The process can be operated with a water recycling system. Control is via PLC with graphical output to a digital panel.

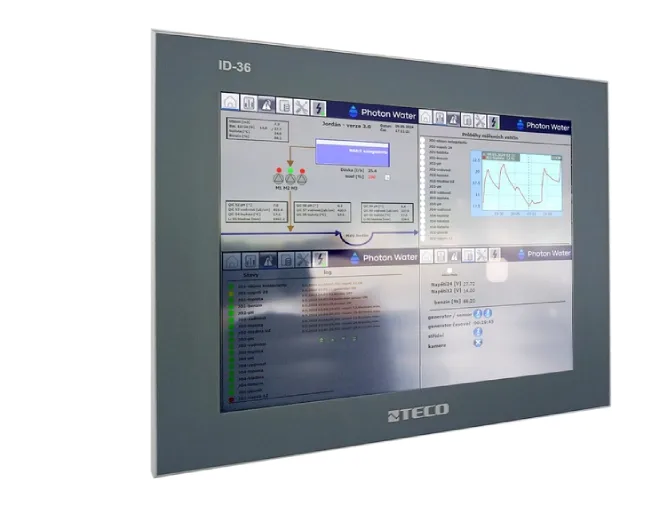

Advanced Control System

TecPFAS™ technology is equipped with an advanced measurement and control system (MaR) and a Siemens Simatic control system. Alternatively, we utilize the advantages of the Tecomat system.


  • Automatic or manual operation of all components
  • Flow measurement at inlet and outlet
  • Inlet and outlet pH values of water
  • Outlet water conductivity and other parameters
  • Water temperature
  • Water level indicators in storage tanks
  • Operating and transmembrane pressures
  • Graphical representation of operating conditions
  • Alarms, statistics, access logs
  • Indicators of component service life in hours
  • Notifications of the need for service intervention
  • Archive of operating conditions

Gallery

What we can do for you

Our services

Administration

Pre-project study
Pilot testing at the site with our own pilot unit
Project documentation
Negotiations with the relevant state authorities

Implementation

Complete delivery of technology
Laboratory analyses and tests
Connection to local MaR
Commissioning and system setup

Technology Management

Technological supervision after system launch
Service contract and chemical supplies
System optimization during operational changes
Control system updates and upgrades

Case Study

Recycling of Industrial Wastewater

Photon Water specializes in industrial wastewater recycling. Its innovative approach to wastewater management provides solutions that are not only cost-effective but also environmentally friendly.
