Phosphorus precipitation station TecPHOS™

Precipitating phosphorus at the inflow to the water reservoir reduces the nutrient load and turbidity of the water and increases the transparency of the water column. By dosing a coagulant, dissolved phosphorus and phytoplankton are removed. Our TecPHOS™ phosphorus precipitation station can do this intelligently and automatically.

Automatic precipitation unit

Precipitation of Phosphorus TecPHOS™

When precipitating phosphorus at the inlet, very small doses of coagulant are applied using a dosing pump into the inflow watercourse. Dosing is carried out over a longer period of time, usually from the spring filling of the reservoir until the end of the growing season.

An automatic precipitation unit is installed at the inlet to the water reservoir, equipped with a coagulant storage tank, a dosing pump, a control unit enabling remote control, and probes for continuous monitoring of the basic parameters of the inflowing water (pH, temperature, conductivity, dissolved oxygen concentration, and ORP).

Phosphorus precipitation - inflow

Use of TecPHOS™ Technology

Thanks to the use of our monitoring systems, you can proactively and timely make informed decisions and implement effective preventive measures. The data is then transmitted via a mobile network to our servers, from which it is accessible through an information visualisation system.

  • Coagulant dosing into the flow
  • Dosing into the inlet before the water reservoir
  • Wastewater treatment plants
Tecomat Control system

Benefits of TecPHOS™ Precipitation Station

Volume & Remote Management

‣ Coagulant storage tank volume up to 20 m³
‣ PLC, remote monitoring

Electrical Connection

‣ Independence from electrical connections
‣ Option of power supply via a generator or photovoltaic system

Mobility

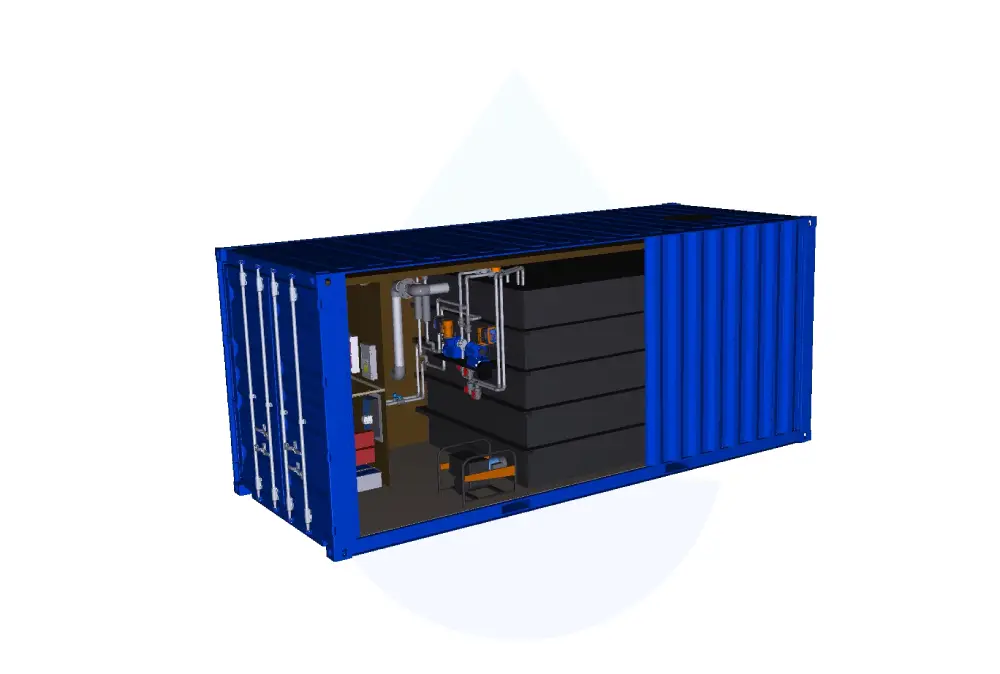

‣ Comprehensive technology equipment in an insulated 20' container
‣ The TecPHOS™ precipitation station is mobile

Advanced control system

TecPHOS™ technology is equipped with an advanced measurement and control system (MaR) and the Tecomat control system. This ensures reliable operation not only today, but also in the future.


  • Automatic or manual operation of all components
  • Flow measurement at inlet and outlet
  • Inlet and outlet pH values of water
  • Outlet water conductivity and other parameters
  • Water temperature
  • Water level indicators in storage tanks
  • Operating and transmembrane pressures
  • Graphical representation of operating conditions
  • Alarms, statistics, access logs
  • Indicators of component service life in hours
  • Notifications of the need for service intervention
  • Archive of operating conditions

Gallery

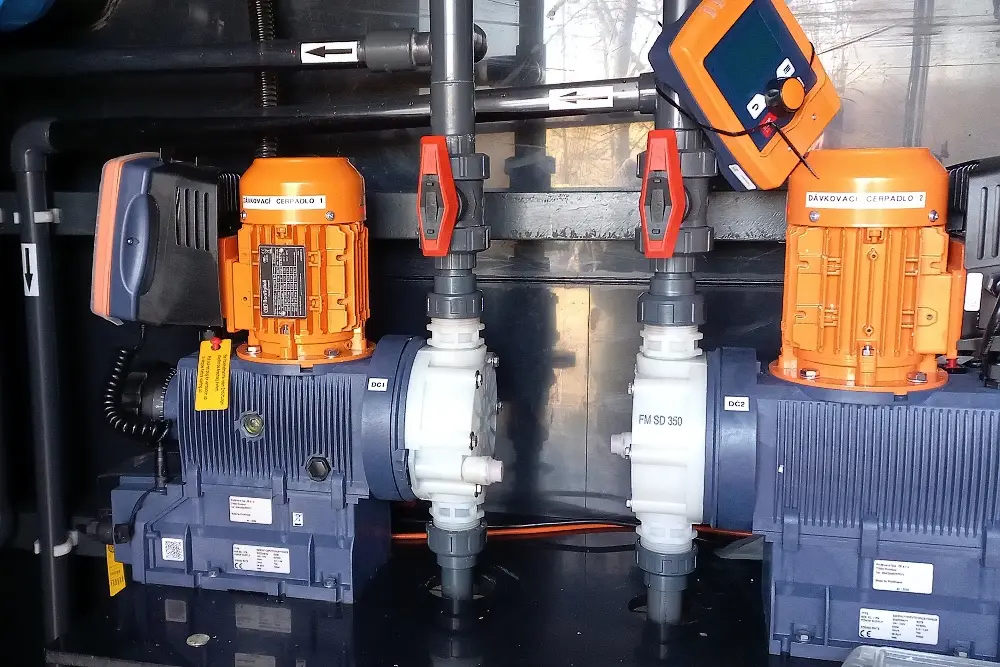

Dosing pump

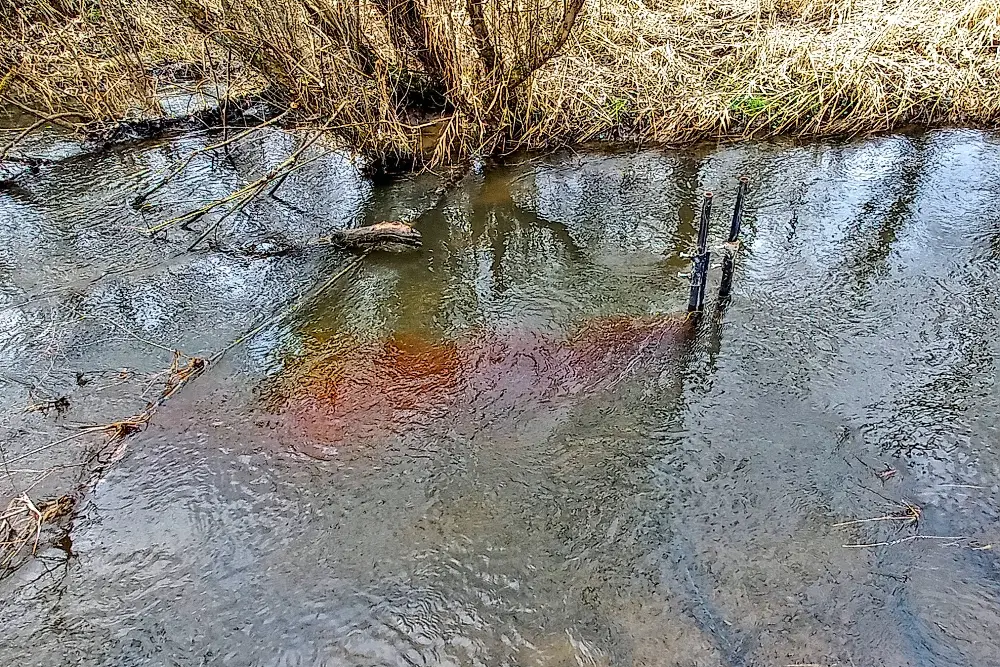

Phosphorus precipitation - inflow

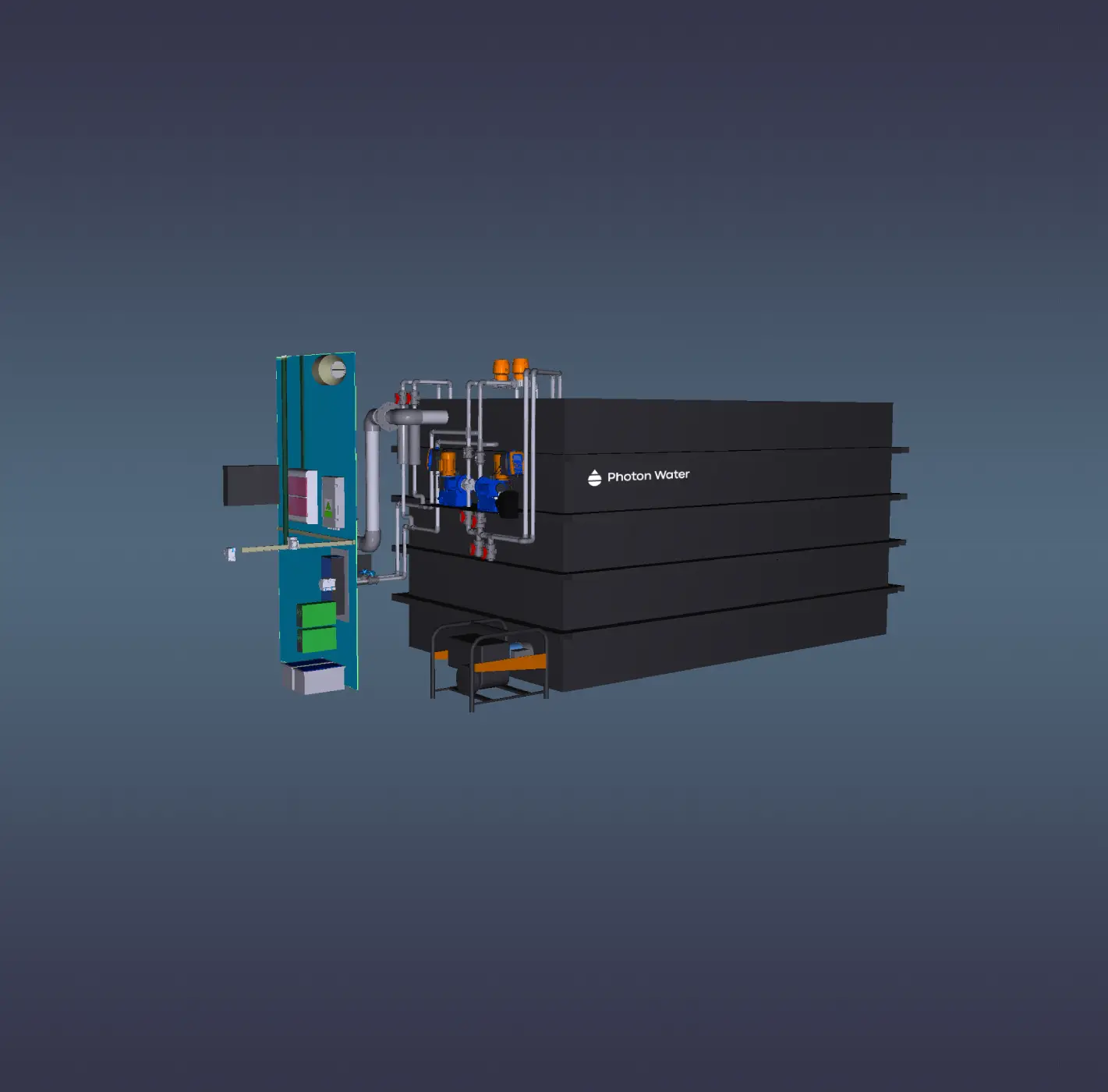

3D visualization of precipitation station

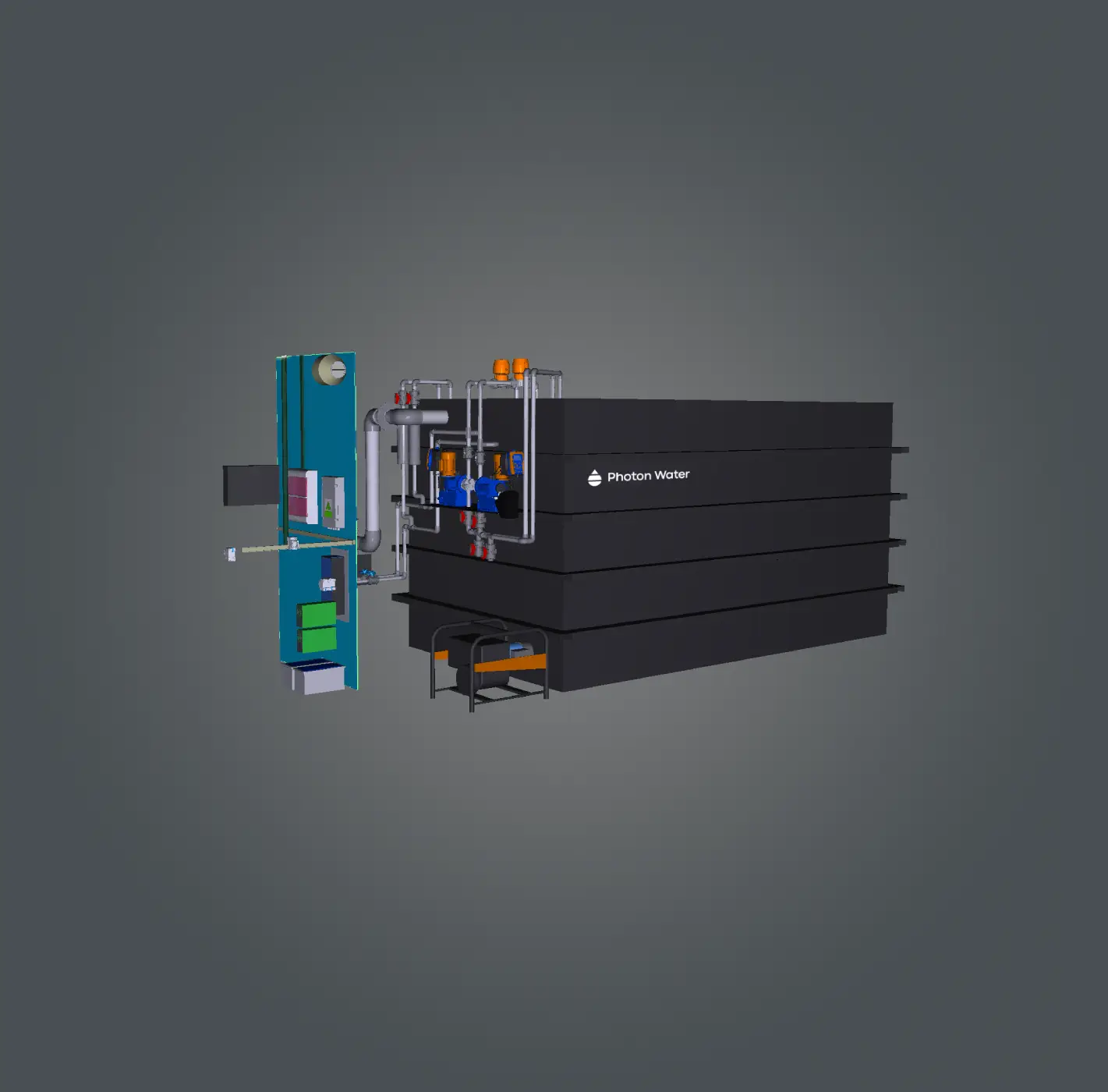

3D visualization of precipitation station

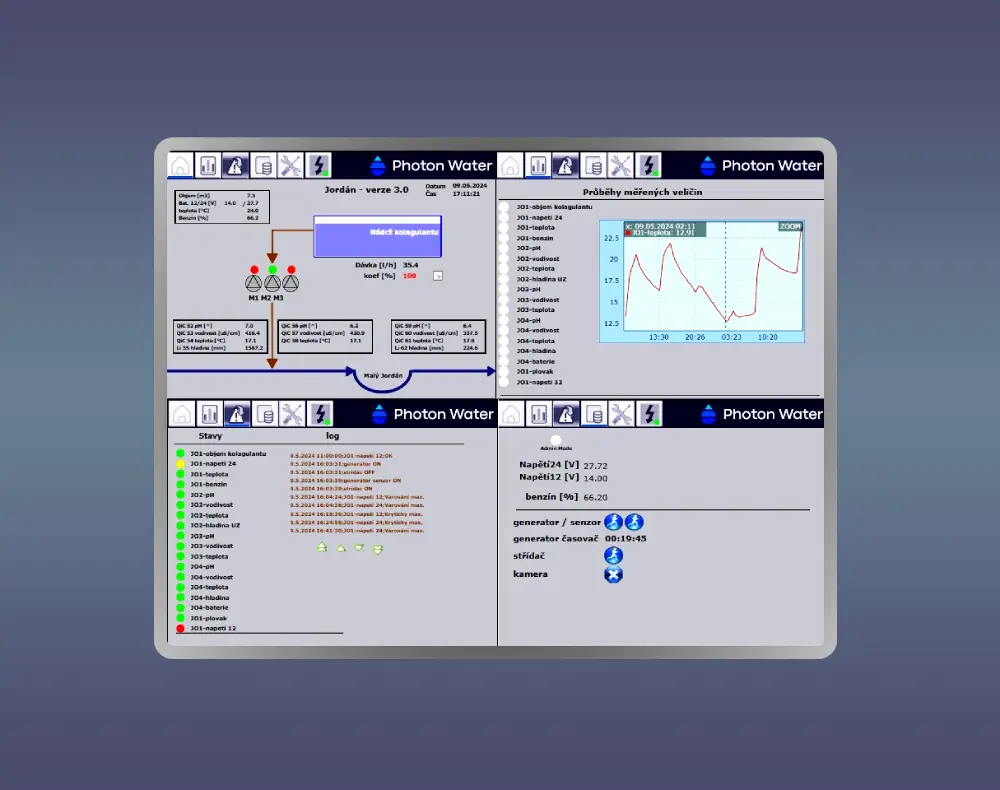

Tecomat Control system
Dosing pump
Phosphorus precipitation - inflow
3D visualization of precipitation station
3D visualization of precipitation station
Tecomat Control system
What we can do for you

Our services

Administration

‣ Pre-project study
‣ Pilot testing at the site with our own pilot unit
‣ Project documentation
‣ Negotiations with the relevant state authorities

Implementation

‣ Complete delivery of technology
‣ Laboratory analyses and tests
‣ Connection to local MaR
‣ Commissioning and system setup

Technology Management

‣ Technological supervision after system launch
‣ Service contract and chemical supplies
‣ System optimization during operational changes
‣ Control system updates and upgrades

Contact us
